BenQ LU935 Laser WUXGA High Brightness Projector
The BenQ LU935 projector boasts a powerful 6000 lumen laser, making it ideal for well-lit environments and large screen projections. Its 1.6x optical zoom and optical lens shift features make it a great replacement for older projectors, without the need to adjust the installation point. Plus, with a solid state laser light source, the LU935 is perfect for high usage environments, eliminating the need for frequent replacement lamps, downtime, and technical assistance.
Key Features & Specifications
- WUXGA 1920 x 1200 16:10
- 6000 ANSI Lumens
- 3,000,000:1 Contrast
- 7kg Weight
- 40 / 33db(eco) Fan Noise
- 3 Year Warranty
- 3 Year / 10,000hrs Laser Warranty
- Est. Laser Life up to 20,000hrs
- 2x HDMI Connection
- DisplayPort Connection
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-/+60%)
- Horizontal Lens Shift (+/- 23%)
- 360 degree tilt Horizontal & Vert.
- HDBaseT Compatible
- Powerful 10W Speaker
- 360° Installation
Throw Distance Chart
(Throw Ratio: 1.36 - 2.18:1)
Image Size | Installation Distance |
---|---|
94" (16:10) 2025x1265mm | From 2.8m to 4.4m |
110" (16:10) 2370x1480mm | From 3.3m to 5.1m |
120" (16:10) 2585x1615mm | From 3.6m to 5.6m |
130" (16:10) 2800x1750mm | From 3.9m to 6.1m |
140" (16:10) 3015x1885mm | From 4.1m to 6.5m |
150" (16:10) 3230x2020mm | From 4.4m to 7.0m |
LU935 4K Short-Throw BlueCore Laser Projector
Reproduce True-to-life Images for Totally Immersive Experiences
- Large H/V lens shift and 1.6X Big zoom perfect for in-house installation
- Native resolution switch to 1080P for multi-display compatibility
- HDMI 2.0 ports with less friction and great brightness
- IP5X dustproof mechanism reducing maintenance costs
Revolutionary BlueCore Laser Technology
The world’s No. 1 DLP brand BenQ introduces its full line of innovative corporate BlueCore laser projectors with LU935, unleashing the WUXGA resolution for professional presentation in corporate settings.
Superior Brightness
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy
Superior Performance
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 200,000 hours without degradation.
Superior Image Quality
Cinematic Grade 92% Rec.709 Colour Coverage for Optimal Colour Performance
LU935’s powerful laser projection utilizes a dual color wheel system to produce unparalleled colour performance that achieves a 92% Rec.709 colour coverage. By increasing colour ratios and the purity of RGBY color, LU935 dramatically enhances colour saturation to ensure superior presentation quality.
High Quality Presentation
Advanced Modes for Supreme Presentation Quality
BenQ LU935’s color modes are designed to fit all modern corporate presentation needs.
Infographic Mode: Showcasing the text and graphics in detail due to high brightness and better color gradation through the 92% Rec.709 color coverage, ensuring more saturated and lively color performance.
Presentation Mode: Designed for conventional presentation with texts and charts, producing the truest blacks and exemplary image sharpness for unmatched readability.
Video Mode: Designed for preserving dynamic color details when playing videos in meeting room with ambient light.
High Brightness and LumiExpert™ Ambient Light Detector for Maximum Eye Comfort
BenQ corporate projector’s new LumiExpert™ technology can automatically detect the ambient light conditions of a meeting room and adjust the projector’s brightness to maximize clarity and comfort. Whether presenting in the dark boardroom or a brightly-office, LumiExpert™ makes sure the BenQ Corporate projectors delivers peak performance.
Laser-Enabled Ultra-High Contrast
LU935 Laser Projector creates strikingly clear images with stratospherically high contrast ratio of 3,000,000 for true deep blacks, vividly rich colors, and fine subtle details. LU935 also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.
20,000 Hour Long-Lasting Performance
BenQ LU935 laser projectors deliver 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making BenQ laser projectors ideal for multiple projections without concern for adjacent projectors generating different levels of brightness after a period of operation.
DLP Technology for Lasting Vibrant Colour
BenQ LU935 laser projector is based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 20,000 hours without degradation, ensuring true-to-life colours and pristinely legible text over countless uses. With filter-free DLP technology, LU935 reduces total cost of ownership and no time-consuming filter maintenance to worry about.
DustGuard Pro™ Technology for Severe Conditions
LU935 is designed with BenQ DustGuard Pro™ Technology, which sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser module, and other optical components. The design has passed the dust chamber test standard for the international dustproof rating of IP5X. It effectively eliminates color wheel sensor failure, visible spots on the image and color decay to significantly reduce service costs and downtime.
360°Rotation Projection
BenQ’s LU935 can be tilted vertically at any angle, allowing projection onto ceiling, walls, floors, or angled signage to fulfill presentation in corporate venues of any sizes.
The 1.6x Zoom for Efficient Upgrades and Installation
With 1.6x Big Zoom, corporations can replace outdated projectors without repositioning existing ceiling mounts as well as place the new projector easily into any space to project large-scale images. The 1.6x zoom allows LU935 to be mounted anywhere from 3.5 to 5.6 meters from the screen and project images of 120", which is the typical image size for corporate meeting rooms, avoiding costly renovation or installation downtime.
Large H/V Lens Shift for Convenient Installation
LU935’s large and H/V lens shift system can be used to properly align the image, shifting up to 60% vertically and 23% horizontally relative to the size of the screen, deliver perfectly proportioned images despite installation or placement challenges in any venue.
Advanced Image Calibration for Ideal Projection Alignment
LU935 is equipped with a two-dimensional keystone correction range of ±30° on both horizontal and vertical axes to counteract the trapezoid effect, a common phenomenon when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner respectively, for perfectly aligned image geometry.
Display Resolution Switch for Multi Display Compatibility
Users can change the LU935 native resolution from WUXGA into 1080P through display resolution switch function. This helps to increase the compatibility with 16:9 screens while doing multi-display projection as well as fitting into the existing 16:9 projector screen while replacement. When the native resolution is set at 1080P, the digital lens shift function will be enabled and the whole lens shift range will be up to ±72% from ±62% vertically, and thus installer can fine-tune and aligned the images, significantly save more setup time.
Highly Integrated Network Control and Management System Compatibility
Comprehensive Control System Compatibility
LU935 is widely compatible with leading projector control systems including Extron, Crestron and PJ-Link, which fulfills network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, LU935 also supports RS-232 for reliable long-distance Installations up to 15 meters.
BenQ DMS Local
For users who would like to control all their displays remotely via LAN, you can download and install the DMS Local software for your system. DMS Local is a Device Information and Management software for use in the Windows operating system. DMS Local also supports Agent Mode which allows you to integrate your DMS Local settings to the cloud-based DMS Cloud.
Laser Light Creates Value Over Time
The laser light source of BenQ BlueCore laser is guaranteed for 20,000 hours of maintenance-free operation, saving costs for lamp replacement and maintenance. Based on the average brightness cut off of typical long-life lamps, BlueCores’s value exceeds that of 10 lamp replacements over the life of the projector.
Multiple lighting modes to maximize energy use
LU935 comes with multiple lighting modes to optimize the projected image in a variety of ambient lighting situations. The feature guarantees the ideal brightness level to enhance the overall visual experience in any environment, while optimizing energy consumption and extending the projector’s lifespan.
High System Integration & Compatibility
HDBaseT for Uncompressed Transmission and Control
LU935 is with groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.
What's in the Box
- BenQ LU935 Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
- Wireless Dongle
- HDBaseT Transmitter
- Protective Case
Projection System | |
Projection System | DLP |
Display | |
Brightness (ANSI lumens) | 6000 |
Native Resolution | WUXGA (1920x1200) |
Native Aspect Ratio | 16:10 |
Contrast Ratio (FOFO) | 3,000,000:1 |
Display Color | 30-bit (1.07 billion colors) |
Light Source | Laser |
Light Source Life | 20000 hrs |
Optical | |
Throw Ratio | 1.36-2.18 |
Zoom Ratio | 1.6x |
Lens | F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm |
Projection Offset (Full-Height) | 0% |
Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
Lens Shift Vertical | -60%~ +60% |
Lens Shift Horizontal | -23%~ +23% |
Picture | |
Rec. 709 Coverage | 92% |
Picture Modes | 3D, Bright, Golf, Infographic, Presentation, sRGB, User 1, User 2, Vivid |
Compatibility | |
Input Lag | 33.4 ms (1080p@60Hz) |
Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
Horizontal Frequency | 15K~102KHz |
Vertical Scan Rate | 23~120Hz |

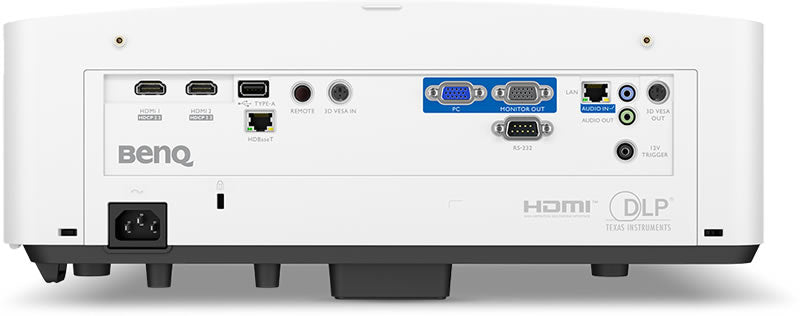

I/O Interface | |
PC in (D-sub 15pin) | (x1), PC in-1 |
Monitor out (D-sub 15pin) | (x1) |
HDMI in | (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2) |
LAN (RJ45) | (x1) |
HDBaseT (RJ45) | (x1), Video/Audio |
3D Sync in | (x1) |
3D Sync out | (x1) |
USB Type A | (x1), USB Type A-1 (2.0/Power Supply1.5A) |
RS232 in (DB-9pin) | (x1) |
Wired Remote in (3.5mm Mini Jack) | (x1) |
DC 12V Trigger (3.5mm Jack) | (x1) |
Audio | |
Speaker | (x2), 10W |
Audio in (3.5mm Mini Jack) | (x1) |
Audio out (3.5mm Mini Jack) | (x1) |
Environment | |
Operating Temperature | 0~40℃ |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption (110V) | 440W |
Stand-by Power Consumption | less than 0.5W |
Network Stand-by Power Consumption | less than 2W |
Accessories | |
Remote Control w/ Battery | RCA011 |
Power Cord (by region) | x1 (1.8M) |
3D Glasses | (Optional), DGD5 |
Installation Guide | 1 (8L) |
Warranty Card (by region) | Yes |
Universal Ceiling Mount | (Optional), CM00G3 |
InstaShow Host | |
LAN (RJ45) | (x1) |
Dimension & Weight | |
Dimensions (WxHxD) (mm) | 416x166 x 351 mm |
Net Weight (kg) | 7 |
