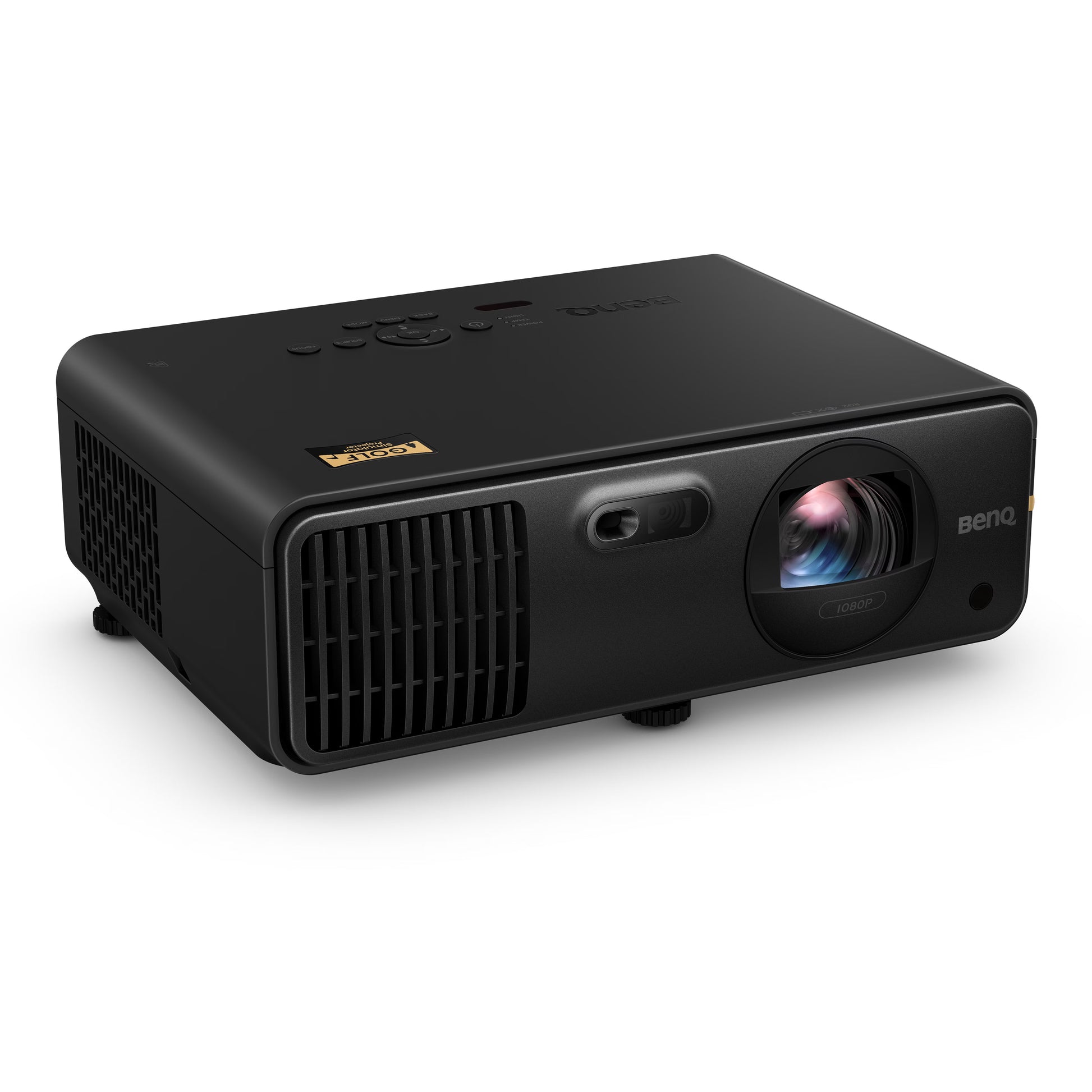

BenQ AH500ST Full HD Laser Golf Simulator Projector
The AH500ST features an ultra-short 0.5 throw ratio, making it ideal for compact areas where the projector needs to be positioned close to the golf simulator impact screen. Its durable laser light source removes concerns over lamp replacements, maintenance, and usage time. Built with a dustproof sealed optical engine, it is rugged enough for garage environments. The latest BenQ auto setup system ensures quick, hassle-free calibration, allowing you to focus on your game with minimal effort.
Key Features & Specifications
- 1080p 1920 x 1080 16:9
- 4,000 ANSI Lumens
- 3,000,000:1 Contrast
- 5.1kg Weight
- 35 / 32db(eco) Fan Noise
- 3 Year/20,000hr Warranty
- 3 Year/20,000hr Laser Warranty
- Est. LED Life up to 32,000hrs
- 83% REC.709 Colour
- 0.5:1 Throw Ratio
- Auto Screen Fit
- Auto Focus
- Horizontal & Vertical Keystone
- 10W Speaker
- HDMI connections
Throw Distance Chart
(Throw Ratio: 0.499:1)
| Image Size | Installation Distance | |
|---|---|---|
| 120" (16:9) 2657x1494mm | Approx. 1.4m | |
| 150" (16:9) 3320x1867mm | Approx. 1.7m | |
| 180" (16:9) 3985x2240mm | Approx. 2.0m | |
| 200" (16:9) 4430x2490mm | Approx. 2.3m | |
Golf Simulation without the Hassle
The AH500ST BenQ entry-level projector is designed for home golf simulation in small spaces. Experience immersive gameplay with vibrant colors, optimal focal length, and easy installation features.
Kickstart with BenQ's Planning Tool
Get started on the right foot with BenQ Golf-Sim 3D Planner tool, simplifying the initial installation process for first-timers.
Easy Installation for Beginners
To solve complex screen ratio, alignment, and focus issues, the BenQ AH500ST integrates commonly used installation functions into a dedicated remote control hotkey, eliminating the need for repetitive adjustments.
Screen Fill
BenQ's exclusive Screen Fill feature automatically switches to 1:1, 4:3, 16:9, or 16:10 native resolutions, ensuring the image fully fills the screen without distortion.
Quick Focus
Press the Focus button on the remote control as well as make slight adjustments to deliver sharp images.
Safe Short-Throw Solution
The AH700ST enables a safe and shadow-free location for your swing.
Up to 200-Inch Display
AH700ST features a professional-grade motorised lens with 1.2x optical zoom flexibility. Easily adjust screen size without reinstalling, ensuring no loss in picture quality.
Perfect for Any Lighting
The AH500ST's laser light source delivers 4000 lumens of brightness and high contrast, ensuring stunning visuals in any lighting condition.
Lights On: Clear contrast and vibrant colours even in a well-lit living room.
Lights Off: Sharp contrast and vivid colours in low-light settings.
True-to-Life Golf Course Colours
Experience authentic colors from the start with BenQ's exclusive Golf Mode, tailored for different golf course environments that ensure an immersive experience from the most famous courses in the world.
Durable Laser Technology
The AH500ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
What's in the Box
- BenQ AH500ST Projector
- Remote Control
- Power Cord
What you may need
- HDMI Cable
- Projector Screen
- Projector Mount
| Display | |
| Brightness (ANSI lumens) | 4000 |
| Native Resolution | 1080P (1920x1080) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | (w/ Lightsource Dimming), 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | 20,000 hrs |
| Optical | |
| Throw Ratio | 0.499 |
| Zoom | Fixed |
| Lens | F#=2.8 f=7.46mm |
| Projection Offset (Full-Height) | 112% |
| Keystone Adjustment | 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees |
| Picture | |
| Rec. 709 Coverage | 83% |
| Picture Modes | 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2 |
| Compatibility | |
| Input Lag | 16.7 ms (1080P 60Hz), 8.3 ms (1080P 120Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |

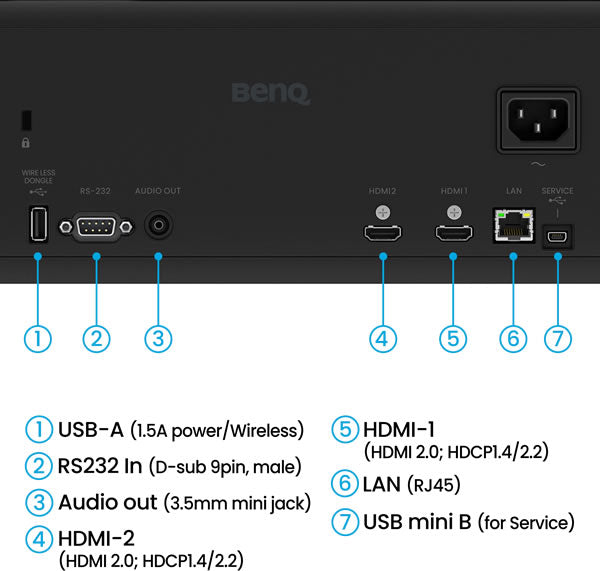

| I/O Interface | |
| HDMI in | HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2) |
| LAN (RJ45) | (x1) |
| USB Type A | (x1), USB Type A-4 (2.0/Wireless Dongle) |
| USB Type Mini B | (x1), USB Type Mini B-1(service) |
| RS232 in (DB-9pin) | (x1) |
| Audio | |
| Speaker | (x1), 10W |
| Audio out (3.5mm Mini Jack) | (x1) |
| Environment | |
| Operating Temperature | 0~40℃ |
| Typical Power Consumption (110V) | 250W |
| Stand-by Power Consumption | 0.5W |
| Network Stand-by Power Consumption | <2W |
| Acoustic Noise (Typ./Eco.)(dB) | 35/32 |
| Accessories | |
| Wireless USB dongle | EZC-5201BS 1080p, (Optional) |
| Remote Control w/ Battery | RCE018 |
| Power Cord (by region) | x1 (3.0M) |
| Quick Start Guide | (x1) 18L |
| Warranty Card (by region) | Yes |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 320.0 x 130.6 x 255 |
| Net Weight (kg) | 5.1 Kg +/- 100g |
